99.95% Pure Polished Tungsten Sheet , Bright Surface Tungsten Plate

Zhuzhou Jiabang Refractory Metal Co., Ltd
Contact Now
    Buy cheap 99.95% Pure Polished Tungsten Sheet , Bright Surface Tungsten Plate from wholesalers

    Buy cheap 99.95% Pure Polished Tungsten Sheet , Bright Surface Tungsten Plate from wholesalers
    • Buy cheap 99.95% Pure Polished Tungsten Sheet , Bright Surface Tungsten Plate from wholesalers

    99.95% Pure Polished Tungsten Sheet , Bright Surface Tungsten Plate

    Ask Lasest Price
    Brand Name : JBNR
    Model Number : W1 W2
    Certification : ISO9001:2008
    Supply Ability : 50000 Piece / Pieces per Month
    Delivery Time : 15-25days
    Price : Negotiable
    • Product Details
    • Company Profile

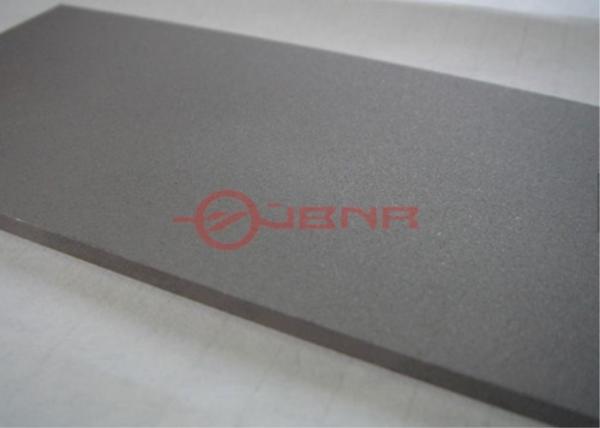

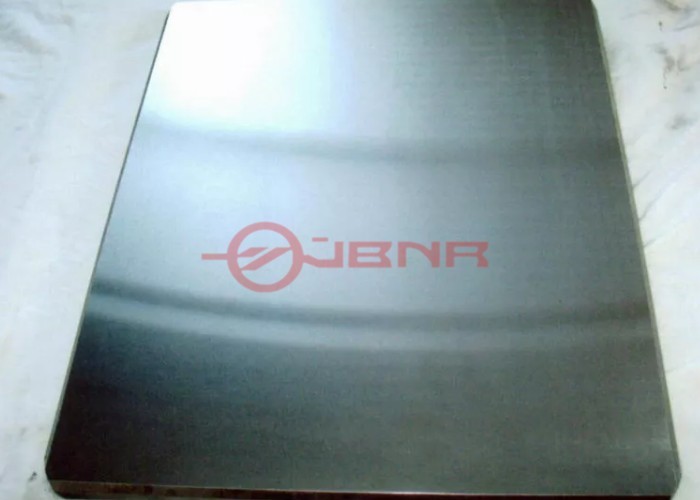

    99.95% Pure Polished Tungsten Sheet , Bright Surface Tungsten Plate

    Tungsten Product GB/T3875-83 Standard 99.95% min Polished Tungsten Sheet / Plate


    NameTungsten plate sheet foil strip
    Puritymore than 99.95%(min)
    Density19.3g/cm3
    StandardASTM760 /GB T3875
    Surfaceblack, polished, Alkaline washing
    Working temperature1500-1800 °C
    Applicationelectronics, illumination, vacuum plating, electron-vacuum, shield, high temperature furnace industry

    Dimensions and Tolerance

    Thickness(mm)Thickness Tolerance (I II)(mm)Width(mm)Width Tolerance(mm)Length(mm)Length Tolerance(mm)
    0.10-0.20±0.02 ±0.0330-300± 350-1000± 3
    > 0.20-0.30±0.025 ±0.03550-400± 350-1000± 3
    > 0.30-0.40±0.03 ±0.0450- 400± 350-1000± 3
    > 0.40-0.60±0.04 ±0.0550-400± 450-1000± 4
    > 0.60-1.0±0.06 ±0.1050-400± 450-1000± 4
    > 1.0-2.0±0.10 ±0.2050-400± 550-1000± 5
    > 2.0-4.0±0.20 ±0.3050-400± 550-1000± 5
    > 4.0-6.0±0.30 ±0.4050-400± 550-1000± 5
    > 6.0±6% ±8 %50-300_50-800_

    Application

    1. For producing electric light source parts and electric vacuum components.

    2. For producing heating elements and refractory parts in high temperature furnaces.

    3. For producing medical laboratory equipment.
    4. Used as electrodes in the field of rare earth industry.
    5. Used in the manufacture of weapons.
    6. Used to make decorations and etc.


    Advantages:

    1. We are an ISO9001 certified company.

    2. We've been awarded as a High-Tech Enterprise.
