    High Temperature Resistance Moly Rod With Strong Wear Resistance

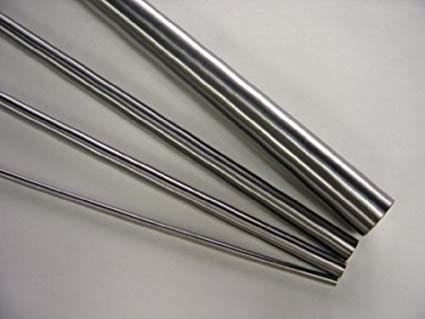

    Molybdenum/Moly/Mo rod


    Description

    Sintering molybdenum rod, also known as sintering molybdenum bar, as the raw material, is mainly used in pulling molybdenum wire and forging molybdenum rod.

    Molybdenum rod for steel-making is an important part in metal industry.

    As molybdenum features high melting point, forging molybdenum rod with high purity and high density shows excellent high-temperature proof of creep deformation.

    JBNR provides high-quality forging and sintering molybdenum rods with different surface requirements.


    Application

    Molybdenum rod is widely used as electrodes, screw, heating element in high-temperature furnace, rabbles in rare earth smelting industry, parts for ion implantation, and heating electrodes in glass fiber industry and support of lamp in the lighting industry, etc.


    Performance
    Forging molybdenum rod
    1. Purity: Mo≥99.95%
    2. Density: ≥10.1g/cm3
    3. Linearity: ≤1%
    Sintering molybdenum rod
    1. Purity: Mo≥99.95%
    2. Density: ≥9.5 g/cm3
    3. Linearity: ≤2%


    Manufacture Process of Molybdenum Rod

    Sintering molybdenum rod
    ItemProcessEquipmentQuality check point
    1Mo powder
    2SievingHigh frequency vibrating sieve1 Purity of molybdenum powder
    3Mixed powderV shape mixer2 Fsss, HB
    4Check
    5Isostatic pressingIsostatic pressing machine1 Measurement
    6Check2 Unit net weight and surface quality
    7IF sinteringIF induction sintering furnace1 Measurements, unit net weight
    8Alignment200T pressing machine2 Density, linearity, surface quality
    9Check3 Quality standard: GB/T17992-1999
    10Package4 Show certificate of quality

    Forging molybdenum rod
    ItemProcessEquipmentQuality check points
    1Sintering Mo rod1 Density of product
    2ForgeForging air-hammer2 Measurements
    3MachiningLathe, grinder3 Linearity, surface quality
    4Check4 Quality standard: GB/T17792-1999
    5Package5 Show certificate of quality

    Technical Parameters of Molybdenum Rod

    Delivery conditionDiameterDiameter tolerance(%)Max length
    Forging or sintering<10±0.12500
    10~30±0.12000
    30~60±0.11500
    60~100±0.21000
    100~200±0.2600
    >200Manufactured according to customers’ requirements

    Package and Transportation
    We deliver molybdenum rod in plywood case and send them by ocean or air.


    Established in 2008, Zhuzhou Jiabang Refractory Metal Co., Ltd. is a professional manufacturer and supplier of molybdenum rods (molybdenum bars) in China.

    Our company can provide forging and sintering molybdenum rods according to customers' drawings
