    Polished Surface Pure Tungsten Electrodes , Good Conductivity Wolfram Tungsten Electrodes

    Ask Lasest Price
    Brand Name : JBNR
    Model Number : WT20,WP,WC20,WL10,WL15,WL20
    Certification : ISO9001:2008
    Supply Ability : 1000 Kilogram / Kilograms per Month
    Delivery Time : 15-25days
    Price : Negotiable
    • Product Details
    • Company Profile

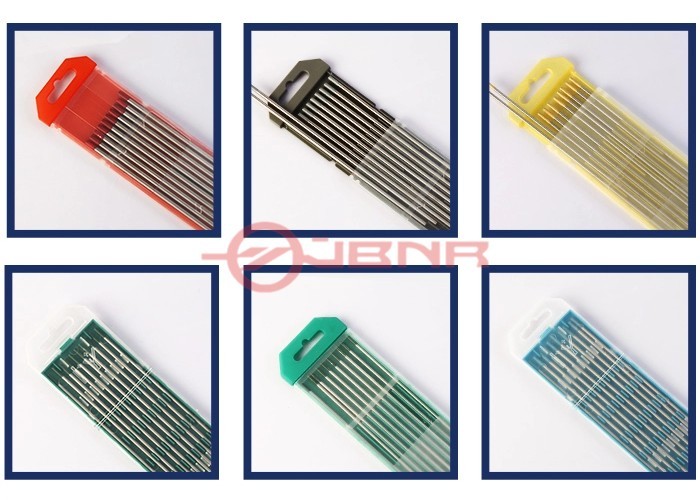

    Polished Surface Pure Tungsten Electrodes , Good Conductivity Wolfram Tungsten Electrodes

    Tungsten Product Tungsten Electrode For Tig Welding Torch Tungsten Welding Rod Tungsten Welding Electrode


    We have generally all types of tungsten electrodes for TIG welding, such as ce - w electrode , law electrode , th - w electrode , zr - w electrode , yt - w electrode , pure tungsten electrode , w-rex electrodes, the working performance is good and price is competitive, we accept sample before cooperation.


    tungsten electrode compositionColor mark
    GradeDioxideDioxide in %Impurities %tungsten %
    WT10ThO20.80-1.20≤0.02RemainderYellow
    WT20ThO21.70-2.20≤0.02RemainderRed
    WT30ThO22.80-3.20≤0.02RemainderPurple
    WT40ThO23.80-4.20≤0.02RemainderOrange
    WC20CeO21.80-2.20≤0.02RemainderGrey
    WL10La2o30.90-1.20≤0.02RemainderBlack
    WL15La2o31.40-1.60≤0.02RemainderGold
    WL20La2o31.90-2.10≤0.02RemainderBlue
    WZr3ZrO20.15-0.50≤0.02RemainderBrown
    WZr8ZrO20.70-0.90≤0.02RemainderWhite
    WP--≤0.0299.8Green
    WYYO21.80-2.20≤0.02RemainderSky blue
    WS2YO21.80-2.20≤0.02RemainderTurquoise

    DiameterDiameter toleranceLengthLength tolerance
    mminchmmmmmm
    11/25(+/-)0.0150,75,150,175(+/-)1.0
    1.26/125(+/-)0.0150,75,150,175(+/-)1.0
    1.61/16(+/-)0.0250,75,150,175(+/-)1.0
    22/25(+/-)0.0250,75,150,175(+/-)1.0
    2.43/32(+/-)0.0250,75,150,175(+/-)1.0
    33/25(+/-)0.0350,75,150,175(+/-)1.0
    3.21/8(+/-)0.0450,75,150,175(+/-)1.0
    45/32(+/-)0.0450,75,150,175(+/-)1.0
    4.83/16(+/-)0.0450,75,150,175(+/-)1.0
    51/5(+/-)0.0450,75,150,175(+/-)1.0
    615/64(+/-)0.0450,75,150,175(+/-)1.0
    6.41/4(+/-)0.0450,75,150,175(+/-)1.0
    85/16(+/-)0.0450,75,150,175(+/-)1.0
    102/5(+/-)0.0450,75,150,175(+/-)1.0

    Feature of tungsten electrode for tig welding

    Low electronic function

    Good conductivity

    Good electron emission ability

    Good mechanical cutting performance

    High elastic modulus, Low vapour pressure

    High recrystallization temperature


    Packaging

    10pcs in plastic case

    one carton box with 1000pcs inside

    protective bubble inside

    Note: your special request will be available for the package of tungsten electrode.
