    Resistance Welding Spare Parts Spot Welding Tungsten Elkonite Brazed Adaptor

    Ask Lasest Price
    Brand Name : JBNR
    Model Number : WEWM004
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, , T/T, Western Union, D/A
    Supply Ability : 5 tons
    Delivery Time : 15days
    • Product Details
    • Company Profile

    Resistance Welding Spare Parts Spot Welding Tungsten Elkonite Brazed Adaptor

    Resistance Welding Spare parts Spot Welding Tungsten Elkonite Brazed Adaptor

    Description:


    In the projection welding,(such as automotive industrial, bridge construction), lots of sheet and work piece need be connected by the nut.

    It need good quality nut welding electrode,not only long life time, but also high strength, high hardness and high wear resistance.

    JBNR’s nut welding electrodes use the copper tungsten alloy as electrodes face material to keep the higher wear resistance and big loading endurance, with Chromium Zirconium copper shank which keep the higher electrical conductivity and thermal conductivity.

    We join the copper tungsten faced and the shank with advanced technology. There is no any gap between two materials and have high welding strength.

    We also supply the copper tungsten pillar. Customer can join the pillar to shank by themselves



    Product Properties:
    Content(%wt.)Density(g/m³)Electrical conductivity(%IACS)Hardness(HRB)GradeApplication
    Cr:0.6-1%8.98570C18200shank
    Cr:0.6-1.5%;Zr:0.05-0.25%;Cu:balance8.98080C18150shank
    75W25Cu14.5943810W3face



    Application:

    automotive industrial, bridge construction etc.

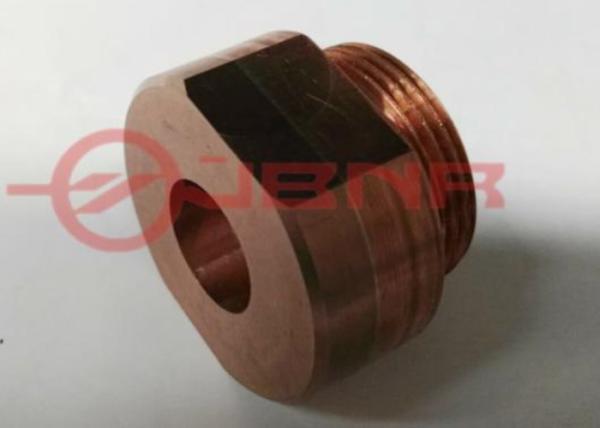

    Product picture:


    Quality Resistance Welding Spare Parts Spot Welding Tungsten Elkonite Brazed Adaptor for sale
