    Class 11 Facing On Welding Electrodes Forming Electrodes Used As Projection Electrode

    Ask Lasest Price
    Brand Name : JBNR
    Model Number : WEWM012
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, , T/T, Western Union, D/A
    Supply Ability : 5 tons
    Delivery Time : 15days
    • Product Details
    • Company Profile

    Class 11 Facing On Welding Electrodes Forming Electrodes Used As Projection Electrode


    Rwma Class 11 Facing On Electrode Forming Electrodes Used As Projection Electrode


    Description:


    For resistance welding, the parts will be pressed and heated under high current until the parts are joined together.

    And for welding, the force between the electrode and the parts are large. Some of them can reach to 450 MPa.

    Uncer this process, it rises great challenge for the welding electrodes.


    We make welding electrodes from refractory metal like tungsten, molybdenum, tungsten alloy and molybdenum alloy.

    These refractory metals have high melting point which can withstand high temperature and they also have good electrical conductivity.


    TUNGSTEN 75% – COPPER 25%, suited to similar applications as Class 10, and for facing on electrode forming electrodes. It is harder than Class 10, and is for general use in projection welding electrodes.


    For joint method between shaft and our refractory metal, we can offer braze welding and also back casting.


    Our products can be used for spot welding, projection welding and also thermode welding.

    Product Properties:
    Content(%wt.)Density(g/m³)Electrical conductivity(%IACS)Hardness(HRB)GradeApplication
    Cr:0.6-1%8.98570C18200shank
    Cr:0.6-1.5%;Zr:0.05-0.25%;Cu:balance8.98080C18150shank
    75W25Cu14.5943810W3face

    For different material, we have different materials to choose. It can ensure that you get the best material for your application.


    Material to weldMaterial of electrode
    uncoated steelCuCrZr / W
    stainless steelCuCrZr / WCu
    coated steelCuCrZr / Mo / W / WCu
    pure copperW / Mo / WCu
    brass (CuZn / Tin Bronze CuSn)CuCrZr / Mo / W / WCu
    other Cu alloysCuCrZr / Mo / W / WCu
    Cu + Cu alloys coatedW / Mo / WCu
    other non-iron metalsCuCrZr / Mo / W / WCu
    precious metalsCuCrZr / Mo / W / WCu
    refractory metalsW

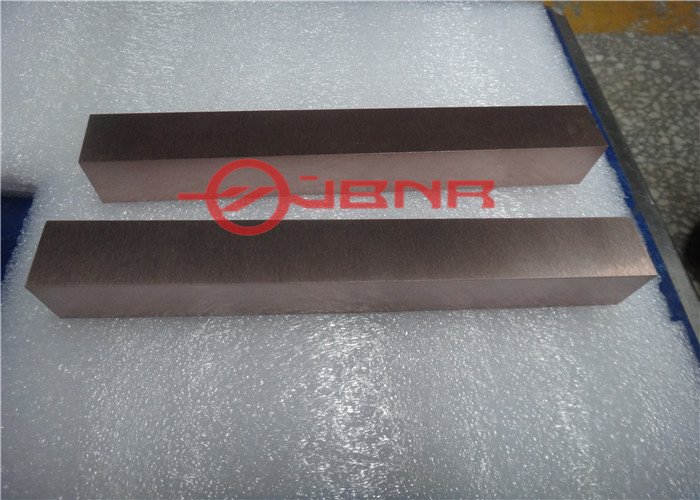

    Product picture:

    Class 11 Facing On Welding Electrodes Forming Electrodes Used As Projection Electrode
