    Submerged Arc Copper Tungsten Welding Electrodes Welding Contact Tips

    Ask Lasest Price
    Brand Name : JBNR
    Certification : RWMA
    Payment Terms : L/C, T/T, Western Union
    Price : Negotiable
    • Product Details
    • Company Profile

    Submerged Arc Copper Tungsten Welding Electrodes Welding Contact Tips

    Generally contact tips was made of copper or the (chromium zirconium copper). Currently, most of the big vessels and big diameter oil pipe need be welded by automation welding machine, which means it need complete the welding process without the stop. Those process controls ensure the welding as good quality. CuCrZr contact tips soft temperature around 800ºC, its less wear resistance capability can not guarantee the 24 hours welding system keep welding without stop to replace the tips.

    JBNR develop the new technology of SAW welding contact tips by using copper tungsten to keep higher softer temperature, higher wear resistance, and CuCrZr material which keep good thermal conductivity.

    Our customers are using our contact tips and proved our product have very good quality. They feedback our new contact tips’ life time is at least 5 times longer than the Cu and CuCrZr.


    content(%wt.)density(g/cm3)conductivity(%IACS)hardness(HRB)RWMA
    Cr: 0.5-1.5% Zr:0.05-0.25% Cu:balance8.98080class 2

    contentDensityHardnessConductivityClass
    W75Cu2514.5903811
    W80Cu2015.2983412

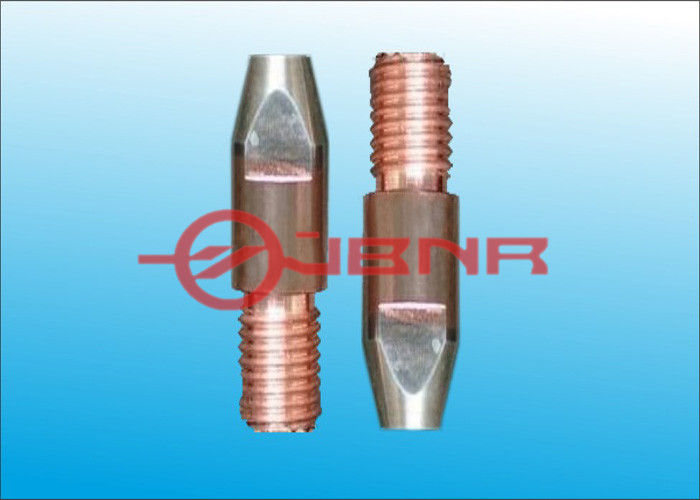

    Product picture:

    Quality Submerged Arc Copper Tungsten Welding Electrodes Welding Contact Tips for sale
